Torsion Bar Bushing

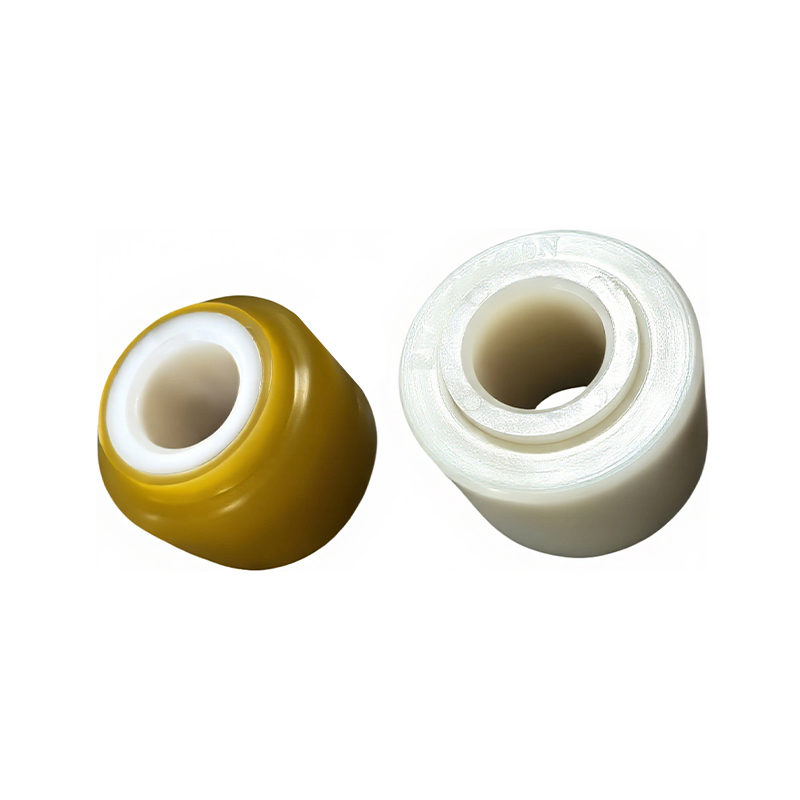

Torsion bar bushings are elastic components installed at the connection between a torsion bar (anti-roll torsion bar or stabilizer bar) and the vehicle frame or bogie frame. They typically consist of a metal outer sleeve, a rubber middle sleeve (or polyurethane elastomer), and a metal inner sleeve. Some designs also include friction sleeves, seals, or retaining mechanisms. Their core function is to absorb vibration energy and cushion impact forces through elastic deformation, while also ensuring flexible positioning and torsional freedom of the torsion bar.
Shock Absorption and Comfort Enhancement
Vibration Absorption: Through the elastic deformation of the rubber/polyurethane bushing, vibration energy is converted into heat, reducing the amplitude of vibration transmitted to the vehicle body or equipment. For example, automotive stabilizer bar bushings can reduce roll vibration by 20%-30%, improving cornering stability.
Noise Suppression: The bushing reduces direct impact between metal components, reducing unusual noise. For example, rail vehicle torsion bar bushings can reduce friction noise by 10-15 decibels.
Ride Comfort: Flexible positioning reduces vehicle body bumps in poor road conditions, giving passengers a more stable ride.
Wear Protection and Life Extension
Friction Optimization: The friction bushing contacts the torsion bar shaft, enabling low-resistance, free movement and reducing wear. For example, a polytetrafluoroethylene friction layer can reduce wear by over 50%.
Sealing Protection: The seal prevents dust and moisture intrusion, preventing rubber aging or metal corrosion, and extending the bushing's service life by 2-3 times that of conventional products.
Structural Reinforcement: The composite design of the metal outer and inner bushings enhances load-bearing capacity and prevents wear on the torsion bar shaft or bushing expulsion.
Positioning Stiffness and Handling Stability
Flexible Positioning: Through the elastic deformation of the rubber bushing, flexible support in the vertical, longitudinal, and yaw directions is achieved, while ensuring a certain level of positioning stiffness to prevent excessive displacement of the torsion bar during vehicle operation.
Torsion Resistance: Specially designed retaining structures (such as the annular retaining groove) provide the bushing with universal torsion resistance, absorbing torsional and yaw forces and improving output torque stability. For example, the nested connection between the polyurethane elastic buffer sleeve and the core shaft prevents torque damage to the buffer sleeve, extending its service life.
Affordability and Adaptability
Cost-Effectiveness: Damaged bushings are low-cost to replace and extend the life of the torsion bar system, reducing lifecycle maintenance costs. For example, automotive stabilizer bar bushings can reduce suspension system repair costs by over 30%.
Customized Design: Material hardness, shape, or structure can be adjusted to meet load requirements. For example, rail transit bushings must withstand temperature fluctuations from -40°C to 150°C, while automotive bushings prioritize lightweighting and fatigue resistance.
